Single tube heater Ø 10,2 without thermocouple - 500 W - 230 V 1P - Length 412 mm
Product N° : 1021.21
VULSTAR big length single tube heater Ø 10,2 x 412 mm, in 321 stainless steel, with a power of 500 W / 230 V 1P, suitable for heating liquids or gases by convection and solids by conduction or radiation. Reinforced sealing (WP+) with a resin for use in humid environments. Electrical connection by 2 copper wires under rubber sheath, length 350 mm. Non-thermocoupled model.
- Heater model :
- Big length
- Heater power (W) :
- 500
- Power tolerance :
- +5/-10%
- Supply voltage :
- 230 V 1P
- Heater diameter (mm) :
- 10.2
- Diameter tolerance :
- +/-0,1
- Specific load (W/cm2)
- 5
- Heater material :
- 321 Stainless steel

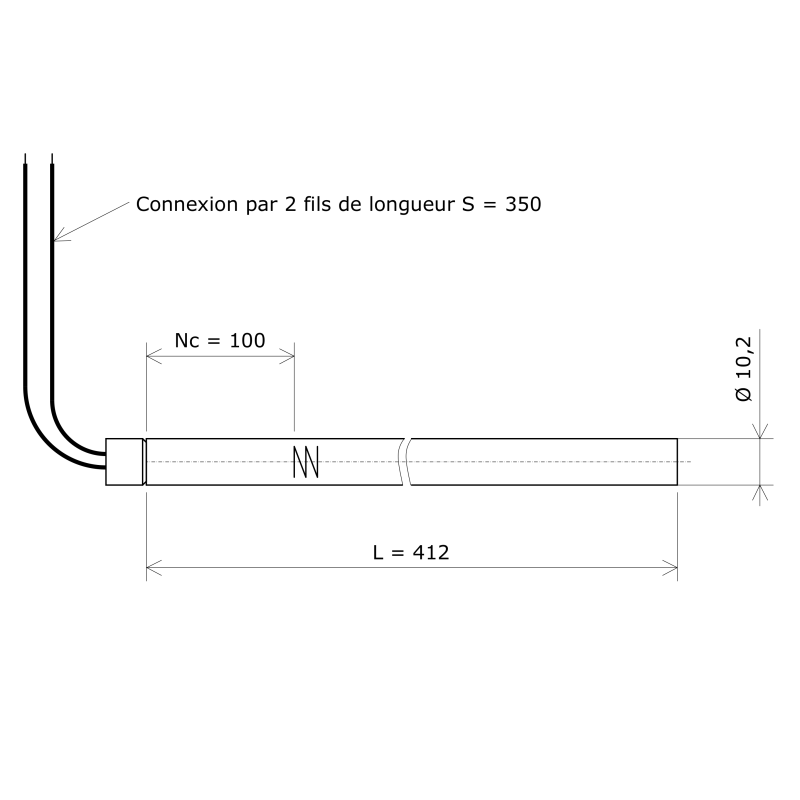

- Length L (mm) :
- 412
- Non heating length Nh (mm) :
- 100
- Connexions :
- 2 Flexible copper wires in polyolefin sheath
- Length of cables S (mm) :
- 350
- Sealing :
- WP+ - Resin (Reinforced sealing, 160 °C max. at terminals)
- Safety device :
- Without
- Weight (kg) :
- 0.1
