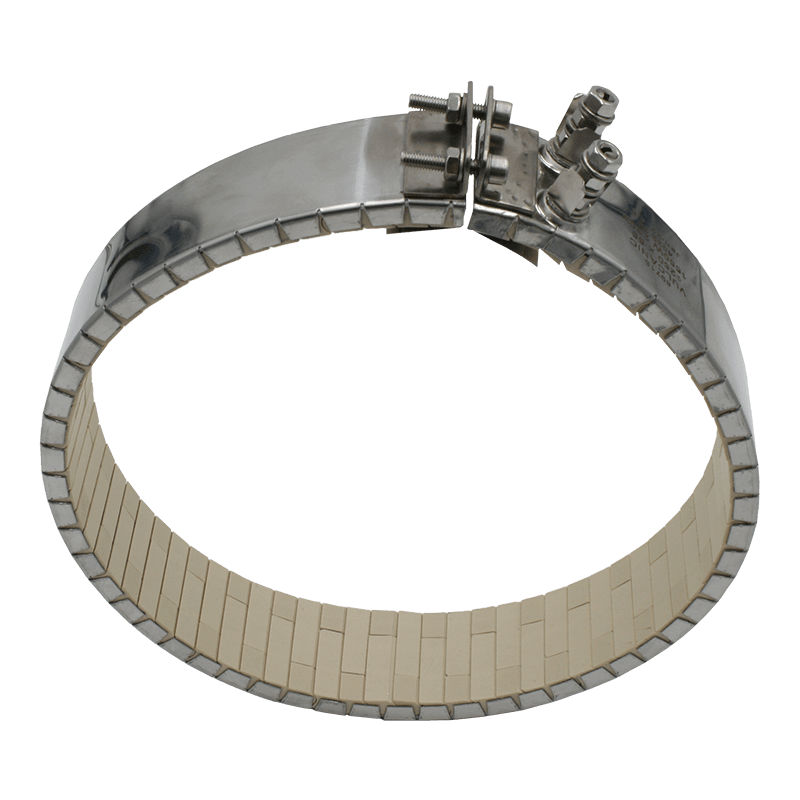

Ceramic band heater - Tightening Ø 500 mm - 3300 W - 230 V 1P
Product N° : 4030.35
Electric ceramic band heater suitable for heating cylindrical workpieces with a nominal Ø of 500 mm, up to a maximum temperature of 700 °C. The band heater consists of a heating wire wound into a coil and inserted into soapstone elements. An outer metal sheet provides mechanical protection and allows the clamp to be tightened to the workpiece with the help of screws. With a power of 3300 W / 230 V 1P, the band is loaded to 4 W/cm2 maxi. The electrical connection is made on 2 M7 threaded terminals.
- Band power (W) :
- 3300
- Power tolerance :
- +5/-10%
- Supply voltage :
- 230 V 1P
- Tightening diameter (mm) :
- 500
- Height H (mm) :
- 55
- Specific load (W/cm2)
- 4
- Clamping plate material :
- Inox
- Electrical connection :
- M7 threaded terminals
