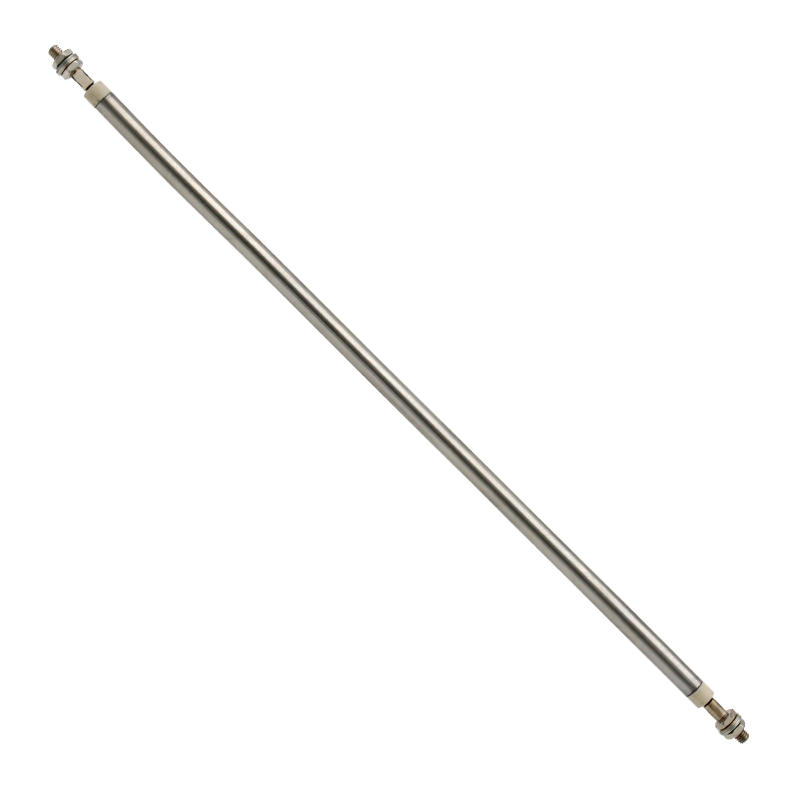

Standard straight tubular heating element - Ø8 x 1260 mm in 321 stainless steel - 1000 W / 230 V 1P
Product N° : 27501.82
Sheathed straight electric heating element Ø 8 mm for heating liquids or gases by convection and solids by conduction. Power 1000 W / 230 V 1P with a specific load of 4 W/cm2. The 321 stainless steel tube of the straight heating element is annealed so that it can be shaped to suit the customer's process. Electrical connection on 2 M6. Electrical connection on 2 M6 threaded terminals. Resin sealing of the element, usable up to 160 °C at the boundary, to ensure insulation in case of long storage or use in humid atmosphere with run-off.
- Heater power (W) :
- 1000
- Power tolerance :
- +5/-10%
- Supply voltage :
- 230 V 1P
- Specific load (W/cm2)
- 4
- Heater diameter (mm) :
- 8
- Heater material :
- 321 Stainless steel
- Length L (mm) :
- 1260
- Heating length Lh (mm) :
- 1000
- Electrical connection :
- M6 threaded terminals
- Sealing :
- WP+ - Resin (Reinforced sealing, 160 °C max. at terminals)
- Weight (kg) :
- 0.3
- Accessories included:
- Washers and nuts on threaded terminals supplied
