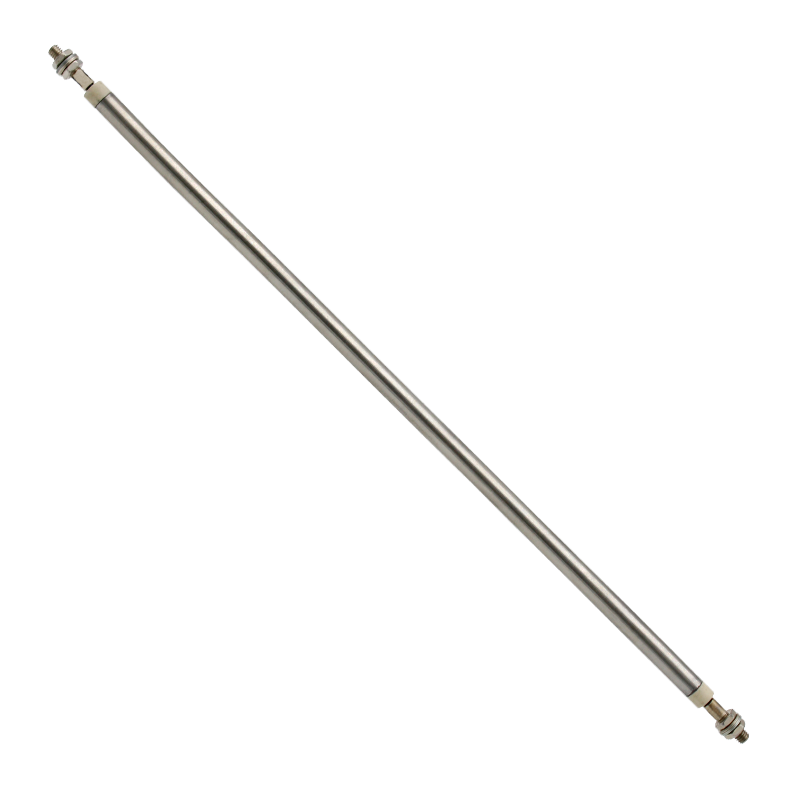

Standard straight tubular heating element - Ø10,2 x 4940 mm in 321 stainless steel - 6000 W / 400 V 1P
Product N° : 27501.76
Sheathed straight electric heating element Ø 10,2 mm 8 mm for heating liquids or gases by convection and solids by conduction. Power 6000 W / 400 V 1P with a specific load of 4 W/cm2. The 321 stainless steel tube of the straight heating element is annealed so that it can be shaped to suit the customer's process. Electrical connection on 2 M6 threaded terminals. Silicone sealing of the element, usable up to 220 °C at the boundary, in a low pollution environment, with low humidity and without sudden temperature changes.
- Heater power (W) :
- 6000
- Power tolerance :
- +5/-10%
- Supply voltage :
- 400 V 1P
- Specific load (W/cm2)
- 4
- Heater diameter (mm) :
- 10.2
- Heater material :
- 321 Stainless steel
- Length L (mm) :
- 4940
- Heating length Lh (mm) :
- 4680
- Electrical connection :
- M6 threaded terminals
- Sealing :
- TM - Silicone (Moderate temperature, 220°C max. at terminals)
- Weight (kg) :
- 1.8
- Accessories included:
- Washers and nuts on threaded terminals supplied
