Single tube heater Ø 10 with thermocouple J - 600 W - 230 V 1P - Length 80 mm
Product N° : 20165.47
VULSTAR high load single tube heater Ø 10 x 80 mm, in 321 stainless steel, with a power of 600 W / 230 V 1P, suitable for heating fluids or metal parts (moulds, dies, plates, tools) up to 350 °C . The outer diameter is calibrated to allow the heater to be inserted into a hole fitted for heating solid parts from the inside. VULSTAR high load heaters are particularly suitable where space is limited. High temperature (HT) sealing with non-waterproof thermal cement. Electrical connection by 2 nickel wires under glass silk sheath, length 350 mm. Model equipped with a J thermocouple.
- Heater model :
- High load
- Heater power (W) :
- 600
- Power tolerance :
- +5/-10%
- Supply voltage :
- 230 V 1P
- Heater diameter (mm) :
- 10
- Diameter tolerance :
- -0,02/-0,08
- Specific load (W/cm2)
- 27
- Heater material :
- 321 Stainless steel

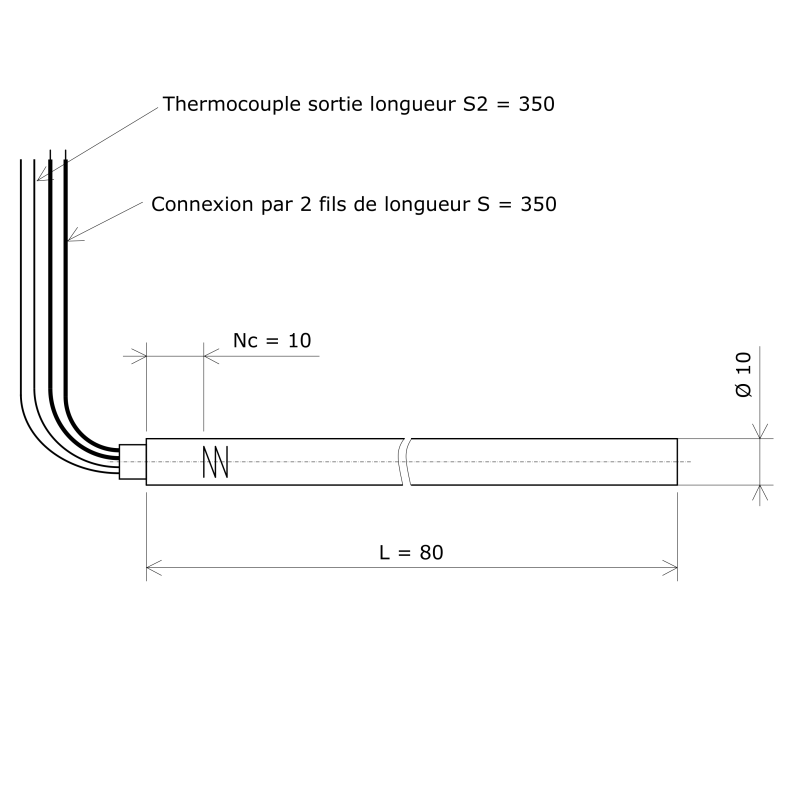

- Length L (mm) :
- 80
- Non heating length Nh (mm) :
- 10
- Connexions :
- 2 flexible nickel wires in glass silk sheath
- Length of cables S (mm) :
- 350
- Sealing :
- HT - Cement (High temperature, max 350°C at terminals)
- Safety device :
- J Thermocouple
- Safety output length S2 (mm) :
- 350
- Weight (kg) :
- 0.035
