Removable immersion heaters for 1000 litre IBC - 6000 W - 400 V 3P
Product N° : 7545.60
The removable immersion heater is a heater designed to raise or maintain the temperature of 1000 litre IBCs containing liquids (water, demineralized water), up to a maximum of 90°C.
It consists of a 316L stainless steel sheated heating elements, with a total power rating of 6000 W / 400 V 3P, brazed on a stainless steel round support flange. Maximum load on the heater: 6,5 W/cm2. The immersion heater is equipped with an IP66 aluminium connector protection box and a regulation thermostat, adjustable range from 0 to 100°C with automatic reset, coupled to the power.
- Heater power (W) :
- 6000
- Power tolerance :
- +5/-10%
- Supply voltage :
- 230 V 1P
- Maximum operating temperature (°C) :
- 90
- Container model :
- 1000 litres IBC

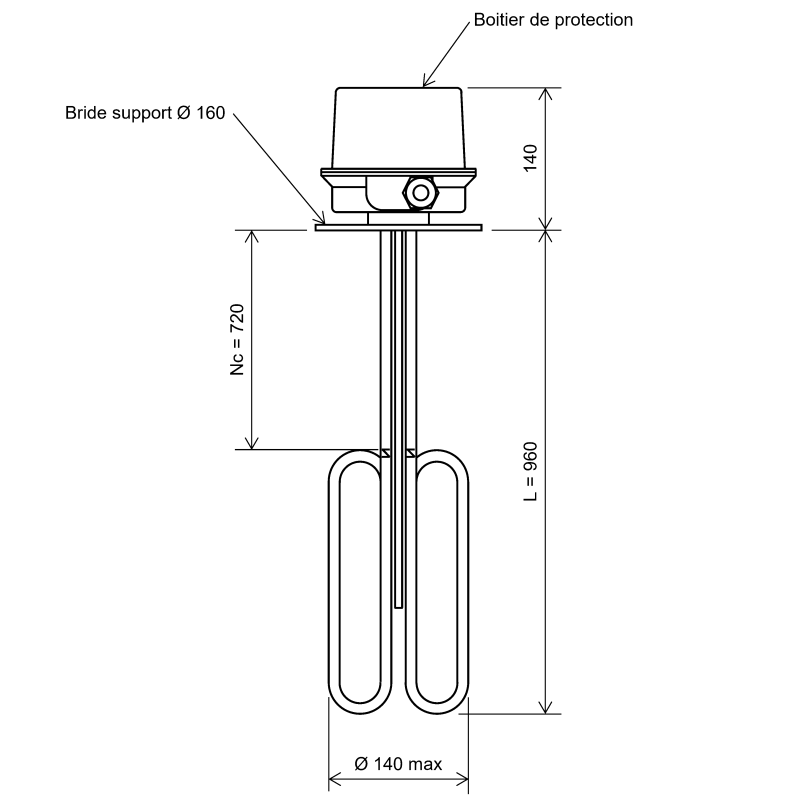

- Plunge length L (mm) :
- 960
- Non heating length Nh (mm) :
- 720
- Specific load (W/cm2)
- 6.5
- Heating element material :
- 316L Stainless steel
- Support flange diameter (mm) :
- 160
- Support flange material :
- Inox
- Connector protection box :
- Junction box model G2 - Aluminium - IP66
- Cable gland diameter :
- ISO 20
- Cable gland material :
- Nickel-plated brass
- Cable gland tightening capacity :
- Cable Ø 7 to Ø 14 mm
- Control device :
- Adjustable thermostat from 0 to 100 °C with automatic reset
- Thermostat coupled with power :
- Oui
-
