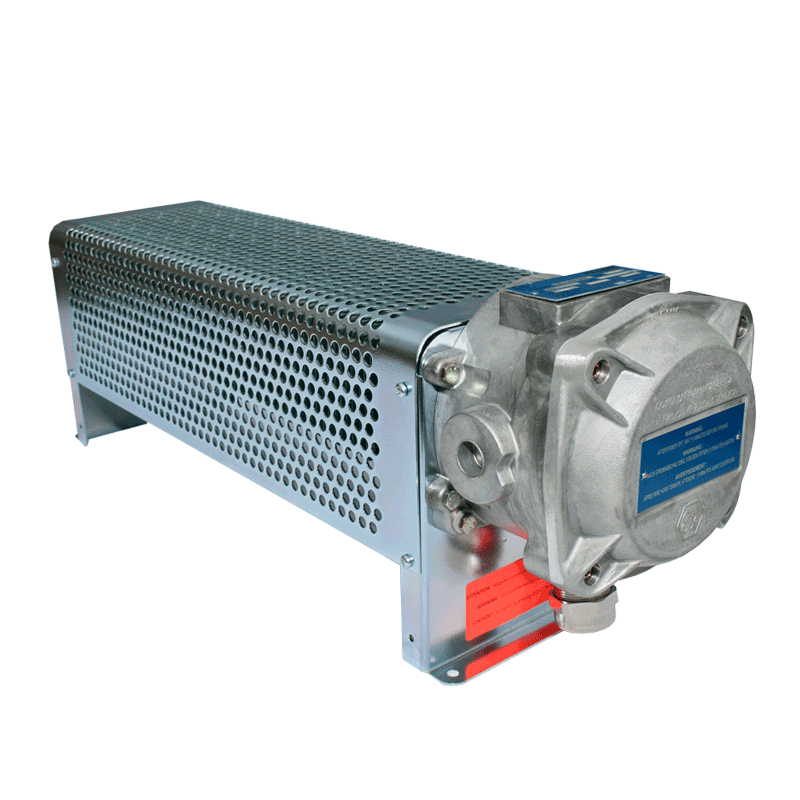

ATEX ''Ex d'' industrial radiator T3 (200 °C) - 1200 W - 400 V 3P - Without thermostat
Product N° : 6410.07
ATEX 2014/34/EU and IECEx certified industrial heater designed to heat industrial premises, technical enclosures, paint booths, storage rooms for flammable products, service stations, drilling platforms, etc., in all places requiring the use of equipment suitable for use in potentially explosive atmospheres.
Category 2 explosion-proof equipment for surface industries, usable in risk zones 1 and 2, in group IIC gas environments with an auto-ignition temperature of over 200°C (T3).
Stainless steel casing, IP66 cast aluminium terminal box.
Radiator not equipped with a control thermostat.
- Radiator power (W) :
- 1200
- Power tolerance :
- +5/-10%
- Supply voltage :
- 400 V 3P
- Atex zone :
- Zones 1 and 2 (gas atmosphere) - T3 (200 °C)
- ATEX marking :
- II 2 G Ex d IIC T3 Gb
- Material of the frame and supports :
- 304L Stainless steel
- Heating element technology :
- Shielded bare resistors
- Case model :
- IP66 - Aluminium
- Protection mode :
- Explosion-proof ''Ex d''
- Control device :
- Without
- Length L of the radiator (mm) :
- 1687
- Height H of the radiator (mm) :
- 275
- Width W of the radiator (mm) :
- 170
- Cable gland diameter :
- 3/4'' NPT
- Cable gland tightening capacity :
- For unarmoured cable from Ø 8 to Ø 18 mm
- Cable gland material :
- Nickel-plated brass
- Weight (kg) :
- 24
-
