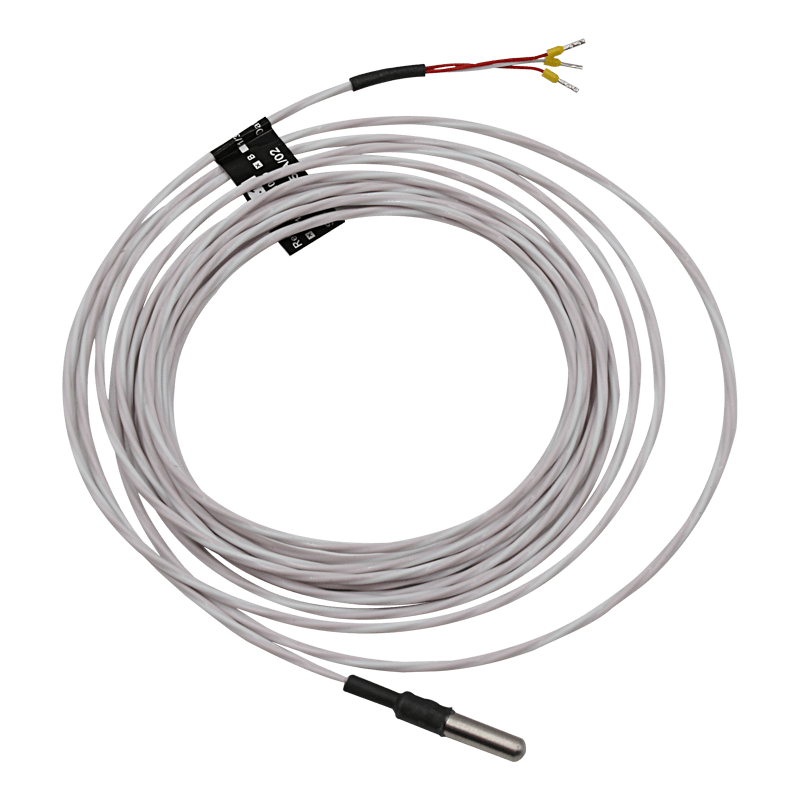

Rigid Pt100 probe Ø 6 mm with Teflon FEP cable - L 100 mm
Product N° : 31035.15
Pt 100 ohm probe at 0°C, class B, 3 wires, insulated in a rigid 316L stainless steel sheath, Ø 6 mm, for temperature measurement between -80 et +205°C. Length of the probe 100 mm. Connection by cable with teflon FEP sheath 5000 mm long. Probe delivered without fixing device.
- Probe model :
- Pt100 ohms at 0°C
- Probe diameter (mm) :
- 6
- Sheat model :
- Rigid
- Probe class :
- B
- Quantity of wires :
- 3
- Sensor temperature range :
- -80 °C to +205 °C
- Cable temperature range :
- -80 °C to +205 °C
- Probe material :
- 316L Stainless steel
- Length of the probe L (mm) :
- 100
- Cable material :
- Tefon FEP
- Length of the cable B (mm) :
- 5000
- Curvature spring :
- Non
- Weight (kg) :
- 0.1
