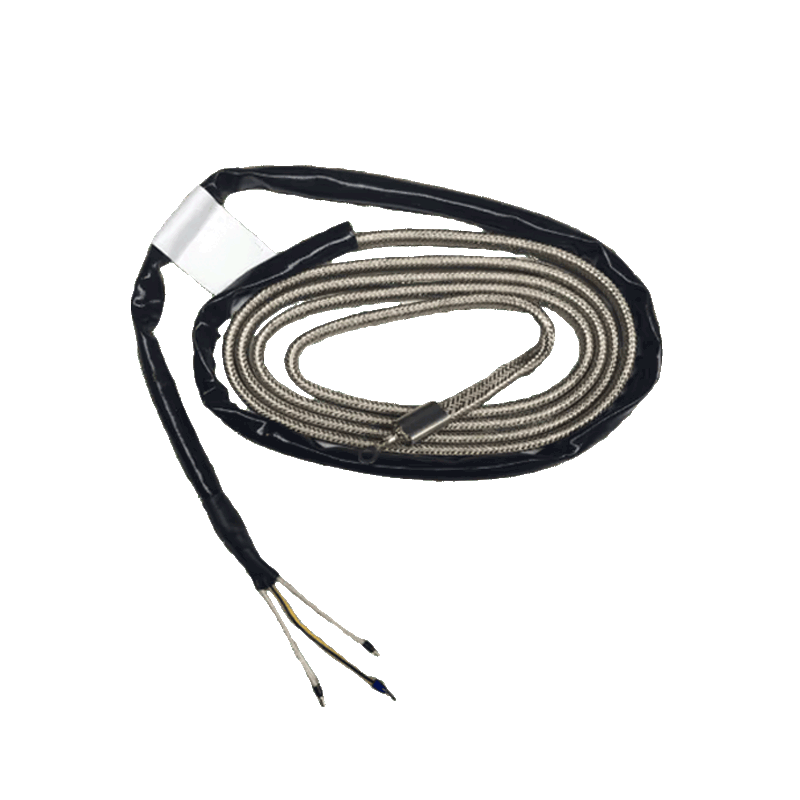

Heating tape with metal braid - 330 W / 230 V 1P - Length 1.5 m
Product N° : 27176.03
Heating tape made of resistive wires electrically insulated by fiberglass and protected by an exterior metal braid. Power of 330 W / 230 V 1P for a finished length of 1,5 m. This flexible heating tape allows maximum power to be installed on small areas in industrial sectors and laboratories. Maximum operating temperature of 450°C continuously. The power supply is via 3 conductors 1 m long.
- Heater power (W) :
- 330
- Power tolerance :
- ±10%
- Supply voltage :
- 230 V 1P
- Insulation material :
- Fiberglass
- Outer sheath material :
- Nickel plated copper braid
- Ingress protection :
- IP20
- Electrical protection class :
- Class I
- Maximum operating temperature (°C) :
- 450
- Area classification :
- Nonhazardous, ordinary area
- Storage temperature :
- -40 °C to +50 °C
- Minimum installation temperature (°C) :
- -40
- Tape section (mm) :
- 12 x 7 (±10%)
- Tape length (m) :
- 1.5
- Minimum bend radius (mm) :
- 15
- Minimum spacing between tapes (mm) :
- 5
- Connection lead length (m) :
- 1
- Connection lead material :
- Fiberglass
- Cross section (mm2) :
- 3 x 1
- Max temperature of connection lead (°C) :
- 200
-
User manual
