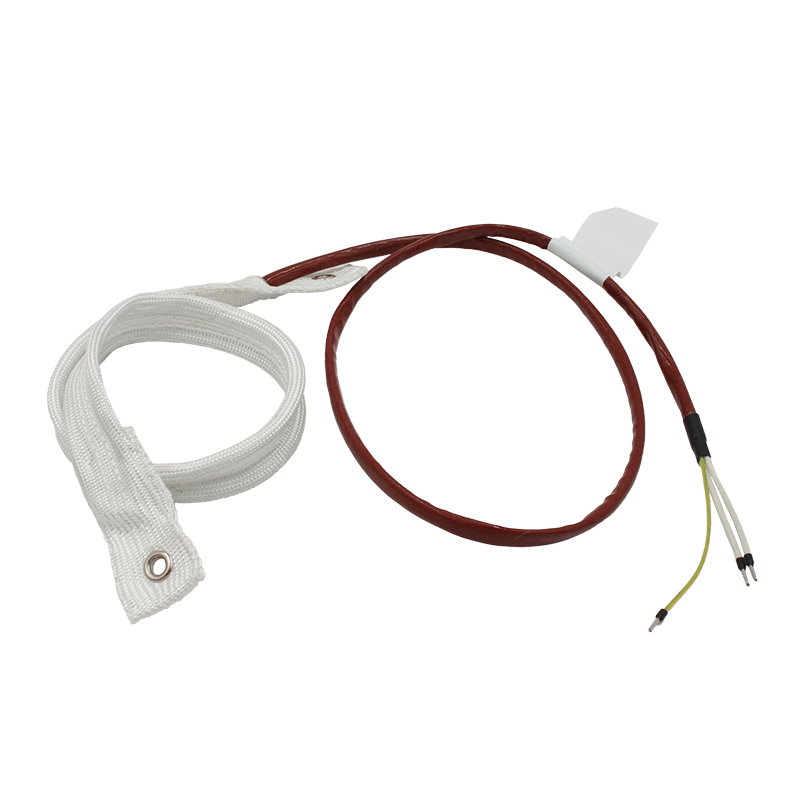

Heating tape with fiberglass braid - 500 W / 230 V 1P - Length 2 m
Product N° : 27177.04
Heating tape made of resistive wires electrically insulated by fiberglass and protected by an exterior fiberglass braid. Power of 500 W / 230 V 1P for a finished length of 2 m. This heating tape is typically used for heating up and compensating for heat losses on short pipes and small-sized structures. The heating tape is not moisture-protected and must only be used in dry areas. Maximum operating temperature of 450°C continuously. The power supply is via 3 conductors 1 m long.
- Heater power (W) :
- 500
- Power tolerance :
- ±10%
- Supply voltage :
- 230 V 1P
- Insulation material :
- Fiberglass
- Outer sheath material :
- Nickel plated copper braid
- Ingress protection :
- IP20
- Electrical protection class :
- Class I
- Maximum operating temperature (°C) :
- 450
- Area classification :
- Nonhazardous, ordinary area
- Storage temperature :
- -40 °C to +50 °C
- Minimum installation temperature (°C) :
- -40
- Tape section (mm) :
- 30 x 5 (±10%)
- Tape length (m) :
- 2
- Minimum bend radius (mm) :
- 15
- Minimum spacing between tapes (mm) :
- 5
- Connection lead length (m) :
- 1
- Connection lead material :
- PTFE
- Cross section (mm2) :
- 3 x 1
- Max temperature of connection lead (°C) :
- 200
-
