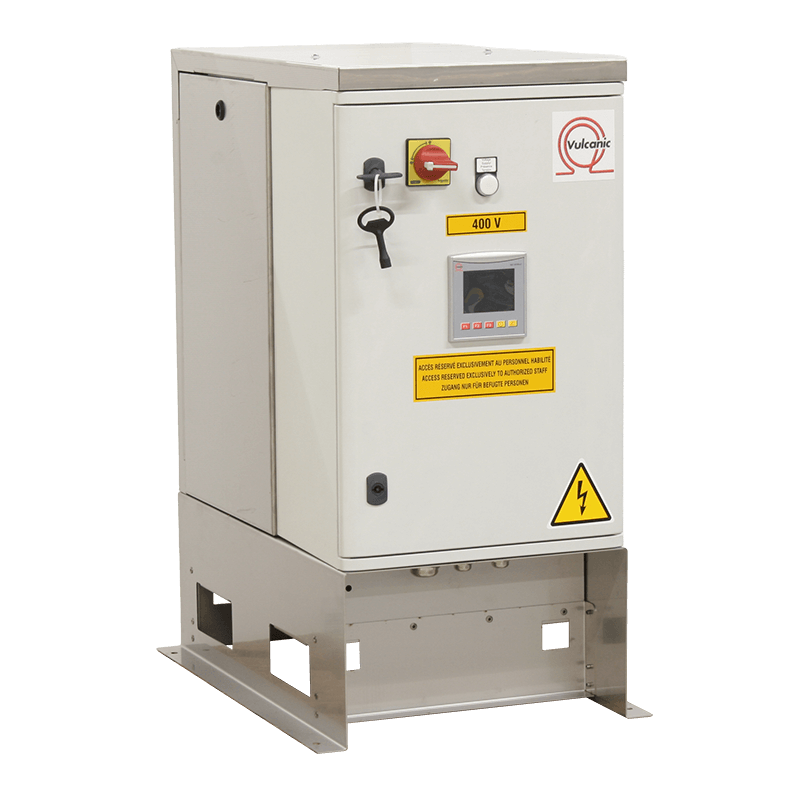

CO2 vaporiser - 4 kW / 400 V 3P - CMS controller
Product N° : 10888.11
CO? vaporiser designed to vaporise a nominal flow of 36 kg/h of liquid CO? (-25°C to -15°C) into gaseous CO? at a minimum of +5°C. Heating power 4 kW at 400 V 3P, operating pressure 13 to 30 bar(g). Vaporisation is achieved by circulating the fluid through a stainless-steel coil integrated into an aluminium block heated by electrical cartridges. Hydraulic connection via 2 × 1/2'' NPT fittings. The heated assembly, insulated, is housed in a stainless-steel enclosure. The vaporiser is equipped with an electrical control cabinet with a CMS controler on the front panel, which controls and limits the block high temperature and the low temperatures at the fluid outlet.
- Heating capacity (kW) :
- 4
- heating capacity tolerance :
- +5/-5%
- Supply voltage:
- 400 V 3P
- Min allowable temperature TS (°C):
- -40
- Liquid CO2 inlet temperature :
- -25 °C to -15 °C
- Minimum required CO2 outlet temperature (°C):
- 5
- Operating pressure (bar g.) :
- 13 to 30
- Max allowable pressure PS (bar g.):
- 100
- Débit nominal de CO2 0 vaporiser (de -20 °C à + 5 °C / 20 bar.g) (kg/h) :
- 36
- CO2 state at inlet:
- Liquid 100%
- CO2 state at outlet:
- Gas 100%
- Control device of the aluminium block:
- Integrated central management (controller)
- Hydraulique connections of the equipment:
- 1/2'' NPT tap
- Option low outlet gas temperature cut-off system:
- No
- Heating device:
- BlocAluCartouche
- Casing material:
- Inox
- Aluminium block temperature measurement:
- Pt100 Sensor
- High aluminium block temperature limit:
- No
- Aluminium heating block over temperature control :
- Yes
- Low fluid outlet temperature alarm:
- Yes
- Very low fluid temperature safety:
- Yes
- Equipment waterproofing:
- IP55
- Equipment installation:
- IntExtSansProtec
- Permitted ambient temperature :
- -40 °C to +40 °C
- Fluid group according to PED (2014/68/EU):
- 2
- Category of the PED 2014/68/EU :
- Equipment covered by article 4§3
- Estimated weigth (kg):
- 80
