CO2 vaporiser - 8 kW / 400 V 3P - Low gas temperature cut-off
Product N° : 10888.22

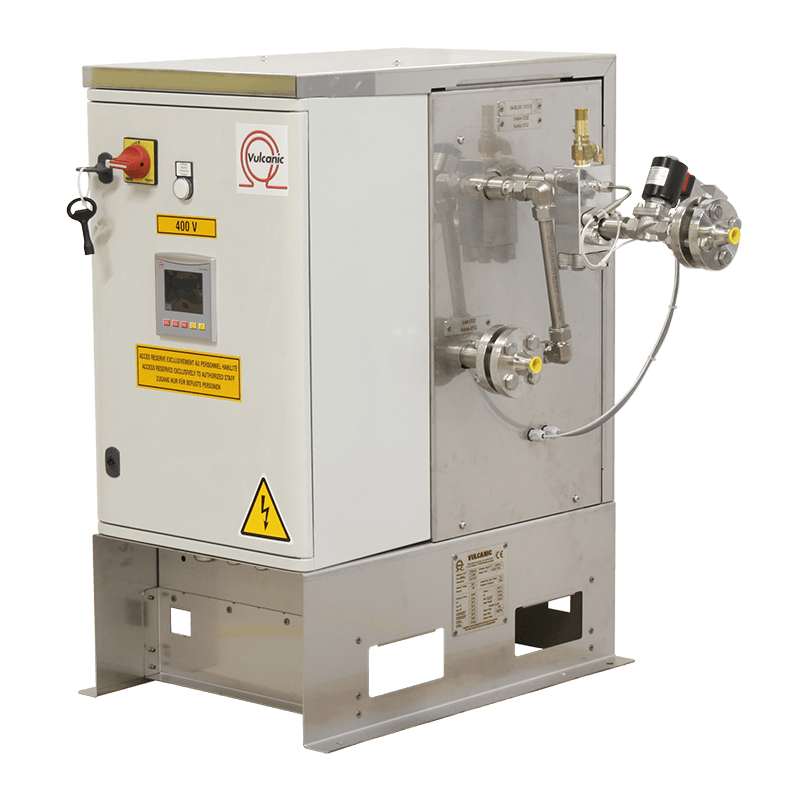

CO? vaporiser designed to vaporise a nominal flow of 76kg/h of liquid CO? (-25°C to -15°C) into gaseous CO? at a minimum of +5°C. Heating power 8kW at 400V 3P, operating pressure 13 to 30bar(g). Vaporisation is achieved by circulating the fluid through a stainless-steel coil integrated into an aluminium block heated by electrical cartridges. The vaporiser is equipped with a low outlet gas temperature cut-off system with a proportional valve at the fluid outlet. Hydraulic connections are via 2 × DN15 NP40 RF flanges (EN1092-1). The vaporiser also includes an electrical control cabinet with an CMS controler on the front panel, which controls and limits the block high temperature and the low temperatures at the fluid outlet.
- Heating capacity (kW) :
- 8
- heating capacity tolerance :
- +5/-5%
- Supply voltage:
- 400 V 3P
- Min allowable temperature TS (°C):
- -29
- Liquid CO2 inlet temperature :
- -25 °C to -15 °C
- Minimum required CO2 outlet temperature (°C):
- 5
- Operating pressure (bar g.) :
- 13 to 30
- Max allowable pressure PS (bar g.):
- 34
- Débit nominal de CO2 0 vaporiser (de -20 °C à + 5 °C / 20 bar.g) (kg/h) :
- 76
- CO2 state at inlet:
- Liquid 100%
- CO2 state at outlet:
- Gas 100%
- Control device of the aluminium block:
- Integrated central management (controller)
- Hydraulique connections of the equipment:
- Flange ND15 NP40 RF (EN 1092-1)
- Option low outlet gas temperature cut-off system:
- Yes
- Heating device:
- BlocAluCartouche
- Casing material:
- Inox
- Aluminium block temperature measurement:
- Pt100 Sensor
- High aluminium block temperature limit:
- No
- Aluminium heating block over temperature control :
- Yes
- Low fluid outlet temperature alarm:
- Yes
- Very low fluid temperature safety:
- Yes
- Equipment waterproofing:
- IP55
- Equipment installation:
- IntExtSansProtec
- Permitted ambient temperature :
- -29a+40
- Fluid group according to PED (2014/68/EU):
- 2
- Category of the PED 2014/68/EU :
- Equipment covered by article 4§3
- Estimated weigth (kg):
- 85
