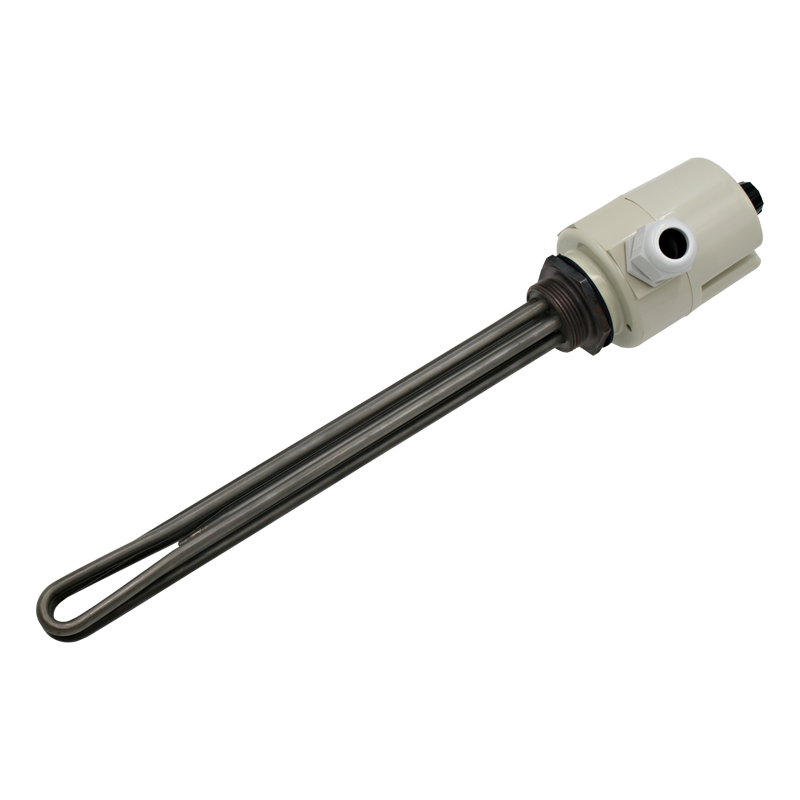

Screw plug immersion heater 1''1/2 Gas cyl. - 2000 W / 230 V 1P - 2W/cm2 - With thermostat 0/100°C with external setting
Product N° : 2116.03
Screw plug immersion heater 2000 W / 230 V 1P recommended for static oil heating up to 100 °C. It consists of three 316L stainless steel shielded heating elements welded to a steel threaded fixing plug 1''1/2 Gaz cyl. The heating elements have a plunge length of 700 mm and are loaded at 2 W/cm2. The immersion heater is equipped with a plastic IP44 connector terminal box and an automatic reset regulation thermostat adjustable from 0 to 100°C by external knob. Maximum allowable pressure 15 bar.g. It is supplied with 1 fibre seal.
- Plug thread standard :
- Cylindrical gas BSPP
- Screw plug diameter :
- 1''1/2
- Immersion heater power (W) :
- 2000
- Power tolerance :
- +5/-10%
- Supply voltage :
- 230 V 1P
- Recommended fluid heating :
- Static oil
- Maximum allowable temperature / TS max (°C) :
- 110
- Maximum operating temperature (°C) :
- 100
- Maximum allowable pressure / max PS (bar) :
- 15
- Specific load (W/cm2) :
- 2
- Immersion length A (mm) :
- 700
- Number of heating elements :
- 3
- Shape of resistance :
- Simple pins
- Resistor diameter :
- 8
- Heating elements material :
- 316L Stainless steel
- Resistance treatment :
- No treatment
- Plug material :
- Acier
- Connection of the resistors to the plug :
- Welded
- Bounding of resistors :
- M4 steel threaded terminals
- Resistor coupling :
- Parallel
- Non-heating length Nh (mm) :
- 40
- Connector offset B (mm) :
- Without
- Max. pin bundle diameter ØF (mm) :
- 42
- Dimension on/flats of plug H (mm) :
- 60
- Sealing of resistors :
- WP+ - Resin (Reinforced sealing, 160 °C max. at terminals)
- Control or safety device no. 1 :
- Adjustable thermostat from 0 to 100 °C with automatic reset
- Installation of control and safety devices :
- In the fluid
- Casting of control and safety devices with power :
- Yes
- Size T (mm) :
- 670
- Connector protection box :
- Junction box model Q24 - Plastic - IP44
- Cable gland diameter :
- ISO 20
- Cable gland material :
- Polyamide
- Weight (kg) :
- 2.5
- Accessories included:
- 1 Fibre seal
