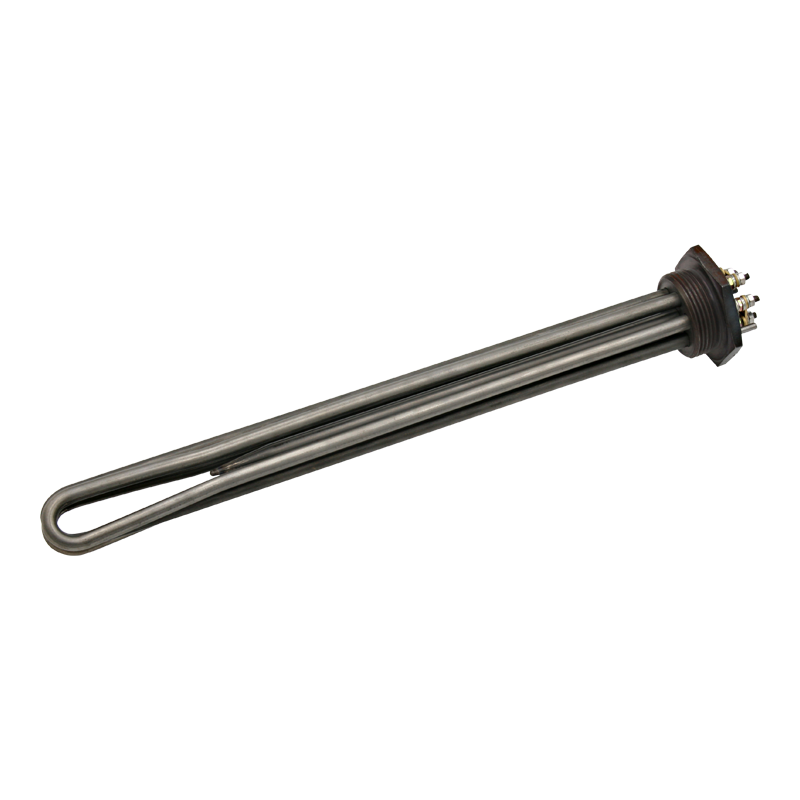

Screw plug immersion heater M45 x 200 - 2000 W / 230 V 1P - 2W/cm2 - With thermowell

Screw plug immersion heater 2000 W / 230 V 1P recommended for static oil heating up to 100 °C. It consists of 3 316L stainless steel shielded heating elements welded to a steel threaded fixing plug ISO M45 x 200. The heating elements have a plunge length of 700 mm and are loaded at 2 W/cm2. The immersion heater is equipped with a Q2-1 interface, on the connector side, for the installation of a terminal box and a thermowell allowing the installation of a regulation or safety device. Maximum allowable pressure 15 bar.g. It is supplied with 1 fibre seal.
