Screw plug immersion heater M45 x 200 - 9000 W / 400 V 3P - 10W/cm2 - With thermowell
Product N° : 3114.32

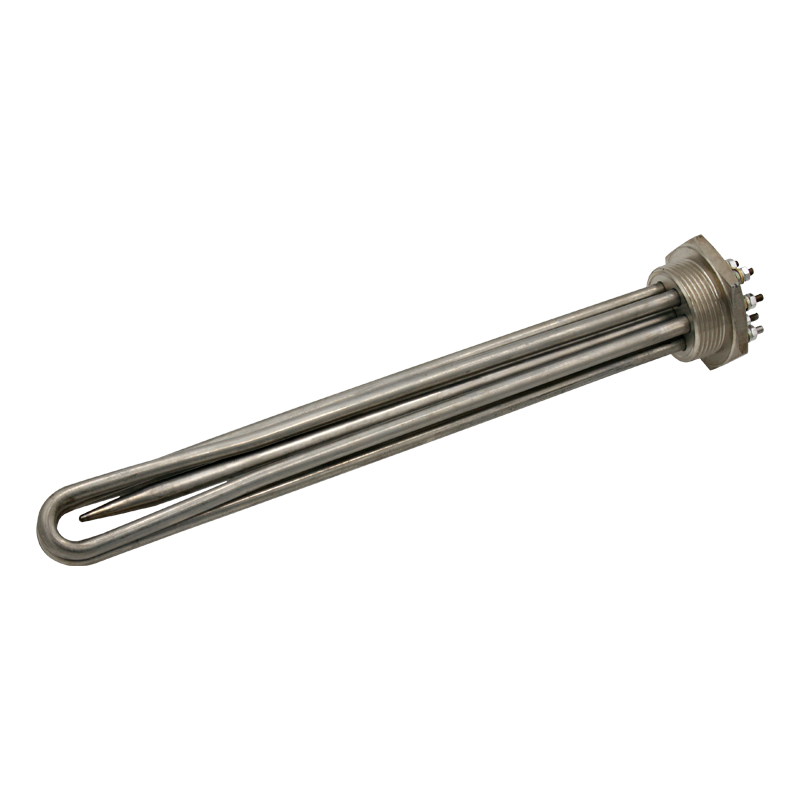

Screw plug immersion heater 9000 W / 400 V 3P recommended for heating slightly chlorinated water-based liquids up to 100 °C. It consists of 3 shielded Incoloy® 825 heating elements welded to a 316L stainless steel threaded fixing plug ISO M45 x 200. The heating elements have a plunge length of 690 mm and are loaded at 10 W/cm2. The immersion heater is equipped with a Q2-1 interface, on the connector side, for the installation of a terminal box and a thermowell allowing the installation of a regulation or safety device. Maximum allowable pressure 15 bar.g. It is supplied with 1 fibre seal.
- Plug thread standard :
- Metric ISO
- Screw plug diameter :
- M45x200
- Immersion heater power (W) :
- 9000
- Power tolerance :
- +5/-10%
- Supply voltage :
- 400 V 3P
- Recommended fluid heating :
- Slightly chlorinated water-based liquids
- Maximum allowable temperature / TS max (°C) :
- 110
- Maximum operating temperature (°C) :
- 100
- Maximum allowable pressure / max PS (bar) :
- 15
- Specific load (W/cm2) :
- 10
- Immersion length A (mm) :
- 690
- Number of heating elements :
- 3
- Shape of resistance :
- Simple pins
- Resistor diameter :
- 8
- Heating elements material :
- 825 Incoloy®
- Resistance treatment :
- No treatment
- Plug material :
- 316L Stainless steel
- Connection of the resistors to the plug :
- Welded
- Bounding of resistors :
- M4 steel threaded terminals
- Resistor coupling :
- Star
- Non-heating length Nh (mm) :
- 40
- Connector offset B (mm) :
- Without
- Max. pin bundle diameter ØF (mm) :
- 42
- Dimension on/flats of plug H (mm) :
- 60
- Sealing of resistors :
- WP+ - Resin (Reinforced sealing, 160 °C max. at terminals)
- Control or safety device no. 1 :
- Bare thermowell Ø 8 mm internal
- Installation of control and safety devices :
- In the fluid
- Size T (mm) :
- 660
- Connector protection box :
- Without
- Junction box mounting interface :
- Interface Q2-1
- Weight (kg) :
- 2.7
- Accessories included:
- 1 Fibre seal
