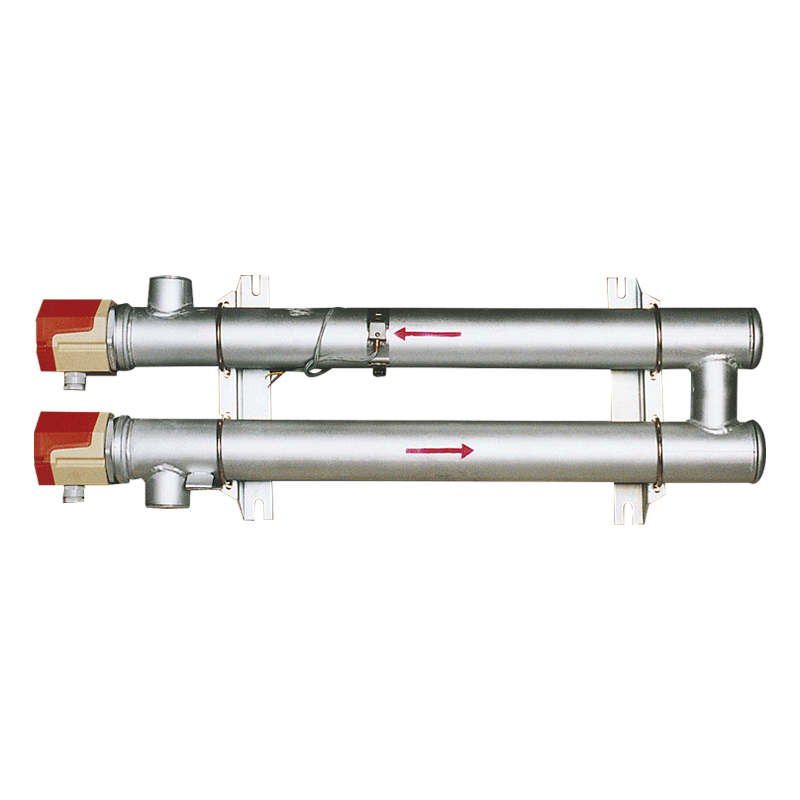

Oil or heavy fuel oil circulation heater - 2 Non-insulated DN80 bodies - 9 kW - 400 V 3P
Product N° : 10702.54
Liquid circulation heater for heating oil or heavy fuel oil to a maximum temperature of 200 °C and a maximum operating pressure of 14.2 bar.g. Consisting of 2 DN80 316L non-insulated stainless steel bodies with 2" gas tapped inlet/outlet connections.
The heater is equipped with a body safety thermostat with automatic reset, adjustable range from 0 to 300 °C and 2 screw-in immersion heaters M77 x 200 with a unitary power of 4,5 kW/400 V 3P.
- Total heater power (kW) :
- 9
- Power tolerance :
- +5/-10%
- Heater supply voltage :
- 400 V 3P
- State of the fluid to be heated :
- Liquid
- Type of fluid to be heated :
- Oil and heavy fuel
- Number of heating units :
- 2
- Heater insulation :
- Not insulated
- Specific load (W/cm2)
- 2
- Minimum operating temperature (°C) :
- 5
- Maximum operating temperature (°C) :
- 190
- Maximum operating pressure (bar.g) :
- 14.2
- Minimum flow at rated power :
- 2 m3/h
- Body diameter DN :
- 80
- LN pole of the heater (mm) :
- 900
- Body material :
- 316L Stainless steel
- Internal body treatment :
- Sans
- External body treatment :
- Sans
- Input/output tapping :
- 2'' gas tap
- Support stands material :
- Protected steel
- Insulation material :
- Sans
- Body safety device :
- Adjustable thermostat from 0 to 300 °C with automatic reset
- Immersion heater part number :
- 2178.04
- Unit power of the immersion heater (kW) :
- 4.5
- Material of the heating pins :
- 321 Stainless steel
- Joining of pins to the cap :
- Welded
- Cap thread diameter :
- M77 x 200
- Cap thread material :
- Acier
- Connector protection box :
- H1 Terminal box - IP55 - Polyamide
- Cable gland :
- 1 ISO 25 polyamide cable gland Ø 9 to 18 mm
- Category of the PED 2014/68/EU :
- Equipment covered by article 4§3
- Min. permissible temperature / TS min. (°C) :
- 5
- Max. permissible temperature / TS max. (°C) :
- 200
- Max. permissible pressure / PS max. (bar.g) :
- 15
- Heater mounting position :
- Horizontal
- Construction code :
- Standard Vulcanic
-
