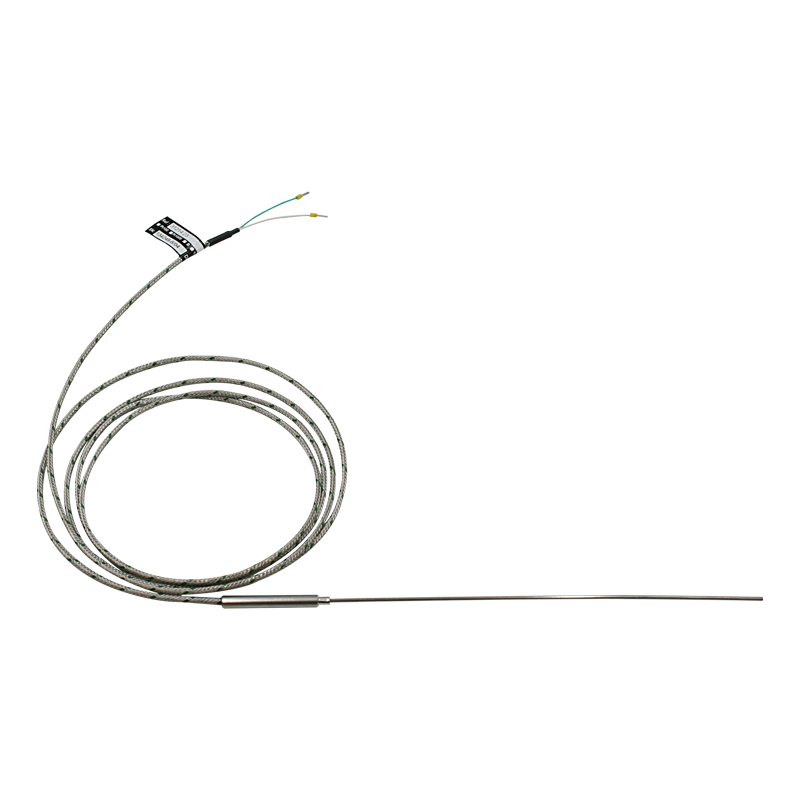

Flexible thermocouple K Ø 1.5 mm with high temperature cable - L 150 mm
Product N° : 31214.18
Thermocouple K, class 2, with hot junctions, insulated in a flexible Inconel 600 sheath, Ø 1.5 mm, for temperature measurement between -40 and +1000°C. Length of the thermocouple 150 mm. Connection by cable with fiber glass sheath and metallic overbraid 2000 mm long. Thermocouple delivered without fixing device.
- Thermocouple model :
- K
- Thermocouple diameter (mm) :
- 1.5
- Sheat model :
- Flexible
- Class :
- 2
- Thermocouple temperature range :
- -40 °C to +1000 °C
- Cable temperature range :
- -70 °C to +400 °C
- Sheat material :
- Inconel 600
- Immersion length L (mm) :
- 150
- Cable material :
- Fiber glass sheath + Metallic overbraid
- Length of the cable B (mm) :
- 2000
