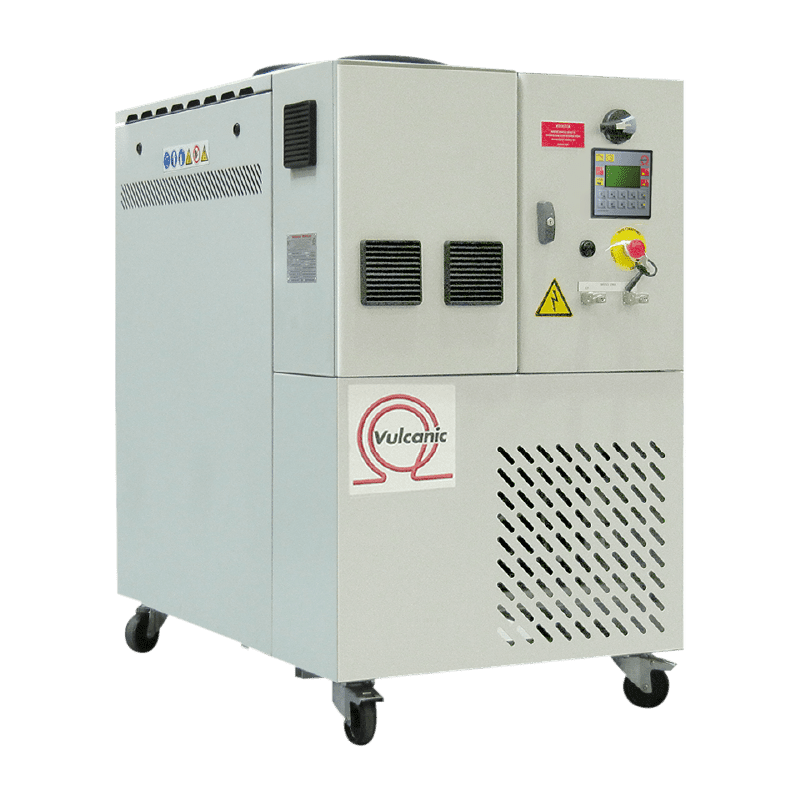

Vulcatherm Hot/Refrigerated - Glycolated Water 90 °C max - Heating power 4kW / 400V 3P - With water cooled refrigerating unit
Product N° : 10821.01
Vulcatherm temperature control unit Hot/Refrigerated for heating, cooling and regulating a closed loop of glycol water from -20°C to 90°C max intended for crystalizers, chemical reactors, climatic chambers, test benches, etc. Power heat 4 kW / 400 V 3P + E. Cooling by integrated refrigerating unit and exchanger/condenser supplied by the customer's industrial water network. Atmospheric expansion of the medium. max admissible pressure of 10 bar.g in the circuit.
The Vulcatherm temperature control unit consists of:
- 1 Electrical heater with temperature sensors
- 1 Pump
- 1 Evaporator exchanger
- 1 condenser water cooled
- 1 Refrigerating compressor
- 1 Atmospheric expansion tank
- 1 Electrical cabinet with integrated Central Management System
- Sensors for control and safety
in a painted frame equipped with castors
- Vulcatherm model :
- Hot/Refrigerated
- Heat transfer medium :
- Water + glycol
- Type of heat transfer medium expansion :
- Atmospheric
- Heating power (kW) :
- 4
- Tolerance on heating power :
- +5/-10%
- Supply voltage :
- 400 V 3P + E
- Maximum current absorbed at 400 V 3P (A) :
- 16
- Maximum temperature of the heat transfer medium (°C) :
- 90
- Cooling power :
- 2 kW for heat transfer fluid at 0°C and cooling water at 25°C
- Minimum temperature of the heat transfer medium (°C) :
- -10
- Cooling device :
- Refrigeration unit with water cooling (customer network)
- Maximum pressure allowed in the current (bar.g) :
- 10
- Expansion volume (l) :
- 9.4
- Medium inlet and outlet connections :
- 3/4'' male gas thread
- Connections for cooling:
- 1/2'' female gas thread
- Système de gestion centralisé (automate)
- Integrated central management (controller)
- Body material :
- Painted frame equipped with castor
- Vulcatherm dimensions (mm) :
- L: 800 x H: 1200 x D:800
-
