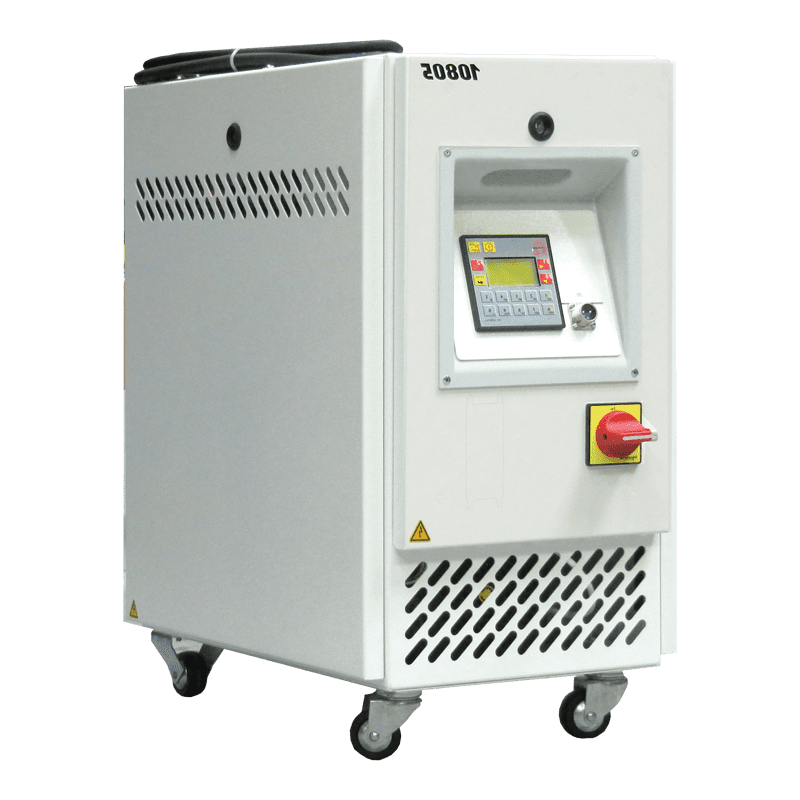

Vulcatherm Hot - Water 110 °C max - Heating power 40kW / 400V 3P - ?Pressurized circuit with mechanical expansion
Product N° : 10815.40
Vulcatherm temperature control unit for heating and regulating a closed water loop from 10°C to 110°C max intended for applications of autoclaves, sterilisers, mixers, melters, etc. Heating power 40 kW / 400 V 3P + E. Pressurization of the circuit at 1 bar.g with mechanical expansion by membrane expansion tank. max admissible pressure of 10 bar.g in the circuit.
The Vulcatherm temperature control unit consists of:
- 1 Electrical heater with temperature sensors
- 1 Pump
- 1 Membrane expansion tank
- 1 Safety valve
- 1 Electrical cabinet with integrated Central Management System
- Sensors for control and safety
in a painted frame equipped with castors
- Vulcatherm model :
- Hot
- Heat transfer medium :
- Water
- Type of heat transfer medium expansion :
- Pressurisation to 1 bar.g with mechanical expansion (Via expansion tank)
- Heating power (kW) :
- 40
- Tolerance on heating power :
- +5/-10%
- Supply voltage :
- 400 V 3P + E
- Maximum current absorbed at 400 V 3P (A) :
- 65
- Maximum temperature of the heat transfer medium (°C) :
- 110
- Minimum temperature of the heat transfer medium (°C) :
- 10
- Maximum pressure allowed in the current (bar.g) :
- 10
- Nominal flow of the heat transfer medium :
- 6 m3/h at delta P of 3.2 bar
- Expansion volume (l) :
- 8
- Medium inlet and outlet connections :
- 1''1/4 male gas thread
- Système de gestion centralisé (automate)
- Integrated central management (controller)
- Body material :
- Painted frame equipped with castor
- Vulcatherm dimensions (mm) :
- L: 500 x H: 1320 x D:950
- Weight (kg) :
- 170
-
