Vulcatherm Hot/Air cooled - Water 90 °C max - Heating power 10kW / 400V 3P - Air cooling

Product N° : 10831.10

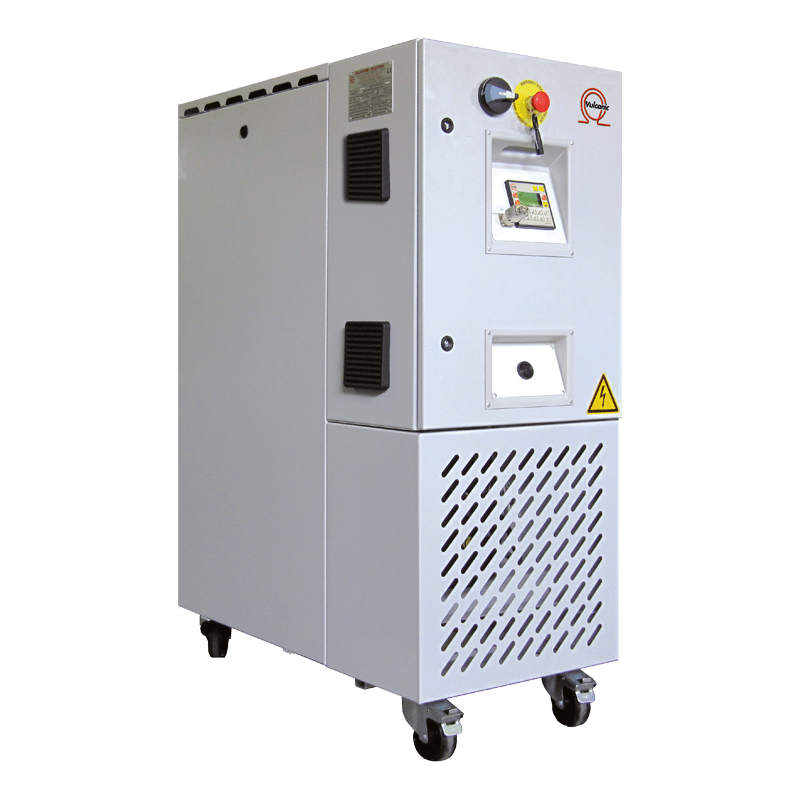

Temperature control units Vulcatherm Hot/Air cooled Water 10831 Vulcanic Vue1
search
  • Temperature control units Vulcatherm Hot/Air cooled Water 10831 Vulcanic Vue1
  • Temperature control units Vulcatherm Hot/Air cooled Water 10831 Vulcanic Draw
  • Opertaing curve of Vulcatherm Hot/Cold Vulcanic Draw

Vulcatherm temperature control unit Hot/Air-cooled thermoregulator for heating, cooling and regulating a closed water loop from 40°C to 90°C max intended for moulding, injection, heating jacket,, tracing, etc. Heating power 10 kW / 400 V 3P + E + N. Cooling by water/air exchanger with fan, ideal for installations without a cold water network. Atmospheric expansion of the medium. max admissible pressure of 10 bar.g in the circuit.

Can be made , Under 56 days

The Vulcatherm temperature control unit consists of:

- 1 Electrical heater with temperature sensors

- 1 Pump

- 1 Water/Air Exchanger with fan

- 1 Atmospheric expansion tank

- 1 Electrical cabinet with integrated Central Management System

- Sensors for control and safety

in a painted frame equipped with castors

Vulcatherm model :
Hot/Air cooled
Heat transfer medium :
Water
Type of heat transfer medium expansion :
Atmospheric
Heating power (kW) :
10
Tolerance on heating power :
+5/-10%
Supply voltage :
400 V 3P + E + N
Maximum current absorbed at 400 V 3P (A) :
20
Maximum temperature of the heat transfer medium (°C) :
90
Cooling power :
8,5 kW for heat transfer fluid at 90°C and cooling air at 32°C
Minimum temperature of the heat transfer medium (°C) :
40
Cooling device :
Water/Air exchanger with air cooling (fan)
Maximum pressure allowed in the current (bar.g) :
10
Nominal flow of the heat transfer medium :
1.5 m3/h at delta P of 3.1 bar
Expansion volume (l) :
9.4
Medium inlet and outlet connections :
3/4'' male gas thread
Système de gestion centralisé (automate)
Integrated central management (controller)
Body material :
Painted frame equipped with castor
Vulcatherm dimensions (mm) :
L: 500 x H: 1320 x D:950
Additional information :
Neutral connection imperative
