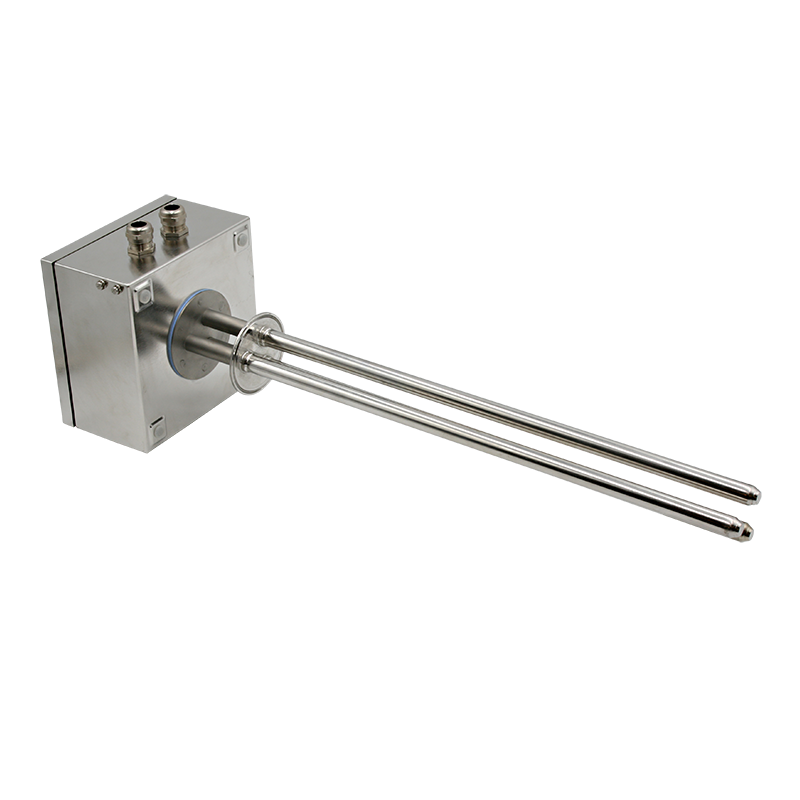

Pharmaceutical immersion heater Ø 3'' - 15000 W /400 V 1P - 10 W/cm² - Ra 0.6
Product N° : 2900.65
Electric immersion heater with Clamp fitting Ø 3'', conforming to the ASME BPE standard, with a power of 15000 W / 400 V 3P, for heating liquids up to 110 °C, intended for agro-food and pharmaceutical environments. It consists of 3 sheathed heating cartridges with an immersion length of 860 mm, rated at 10 W/cm², welded onto the fitting. All components in direct contact with the fluid feature a suitable surface finish (Ra 0.6) to minimise retention and the risk of contamination. The immersion heater is equipped with a stainless steel IP55 junction box for connector protection. Maximum permissible pressure: 10 bar.g.
- Clamp cap diameter :
- 3''
- Clamp cap standard :
- ASME BPE
- Immersion heater power (W) :
- 15000
- Power tolerance :
- +5/-10%
- Supply voltage :
- 400 V 3P
- Minimum permissible temperature / TS mini (°C) :
- -20
- Maximum permissible temperature / TS max (°C) :
- 110
- Maximum permissible pressure / max PS (bar) :
- 10
- Specific load (W/cm2) :
- 10
- Immersion length A (mm) :
- 860
- Number of heating elements :
- 3
- Heating element diameter (mm) :
- 20
- Heating elements material :
- 316L Stainless steel
- Heating element treatment :
- Mechanical polishing + Electrolytic polishing
- Surface finish of materials in contact with the fluid :
- Ra less than or equal to 0.6
- Clamp cap material :
- 316L Stainless steel
- Joint between heating elements and clamp cap :
- Welded
- Non-heating length Nh (mm) :
- 40
- Connector offset B (mm) :
- 60
- Sealing of heating elements :
- WP+ - Resin (Reinforced sealing, 160 °C max. at terminals)
- Protection box :
- Junction box model C0 - Stainless steel - IP55
- Power cable gland diameter :
- ISO 25
- Cable gland material :
- Polyamide
- Safety device :
- Without
- Weight (kg) :
- 5
