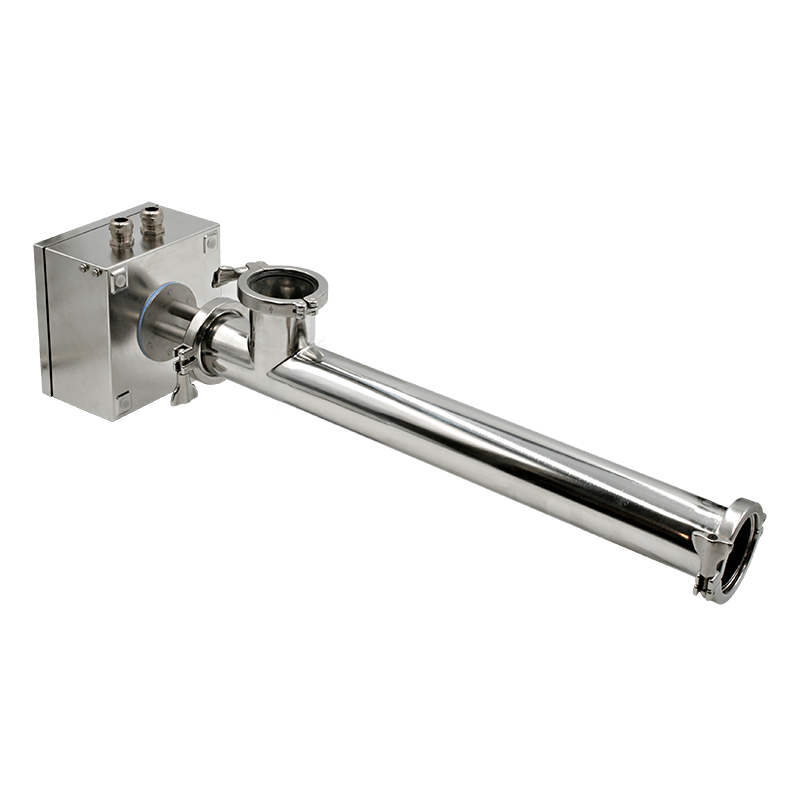

Pharmaceutical fluid circulation heater Ø 3'' - 3000 W / 230 V 1P - 6 W/cm² - Ra 0.8
Product N° : 12900.03
Electric in-line fluid heater Ø 3'', compliant with the ASME BPE standard, rated at 3000 W / 230 V 1P, with a specific load of 6 W/cm2, intended for heating liquids (water, CIP solutions) up to 100 °C, for agro-food and pharmaceutical applications. The heater consists of a 316L stainless steel body with inlet and outlet connections via 3'' ASME BPE ferrules. All components in direct contact with the fluid have a suitable surface finish (Ra 0.8) to minimise retention and the risk of contamination. Electrical connection is provided via a stainless steel IP55 junction box. Maximum operating pressure: 9.5 bar.g.
- Body diameter:
- 3''
- Body standard:
- ASME BPE
- Heater power (W):
- 3000
- Power tolerance:
- +5/-10%
- Minimum operating temperature (°C):
- -20
- Maximum operating temperature (°C):
- 100
- Maximum operating pressure (bar.g):
- 9.5
- Supply voltage:
- 230 V 1P
- Specific load (W/cm2):
- 6
- Heater material:
- 316L Stainless steel
- Surface finish of materials in contact with the fluid:
- Ra less than or equal to 0.8
- Internal treatment:
- Mechanical polishing + Passivation
- Inlet and outlet ports:
- Ferrule Ø 3" ASME BPE
- Total length of the heater (mm):
- 625
- Gaskets material:
- EPDM
- Number of heating elements:
- 3
- Heating element diameter (mm):
- 20
- Heating elements material:
- 316L Stainless steel
- Protection box:
- Junction box model C0 - Stainless steel - IP55
- Power cable gland diameter:
- ISO 20
- Cable gland material:
- Polyamide
- Safety device:
- Without
- Weight (kg):
- 6.2
- Minimum permissible temperature / TS mini (°C):
- -20
- Maximum permissible temperature / TS max (°C):
- 110
- Maximum permissible pressure / PS max (bar.g):
- 10
- PED Fluid Group:
- 2 (non dangerous)
- Category of the PED 2014/68/EU:
- Equipment covered by article 4§3
- Construction code:
- Standard Vulcanic
- Heater mounting position:
- Horizontal
