CO2 vaporiser - 60 kW / 400 V 3P - Low gas temperature cut-off
Product N° : 10888.60

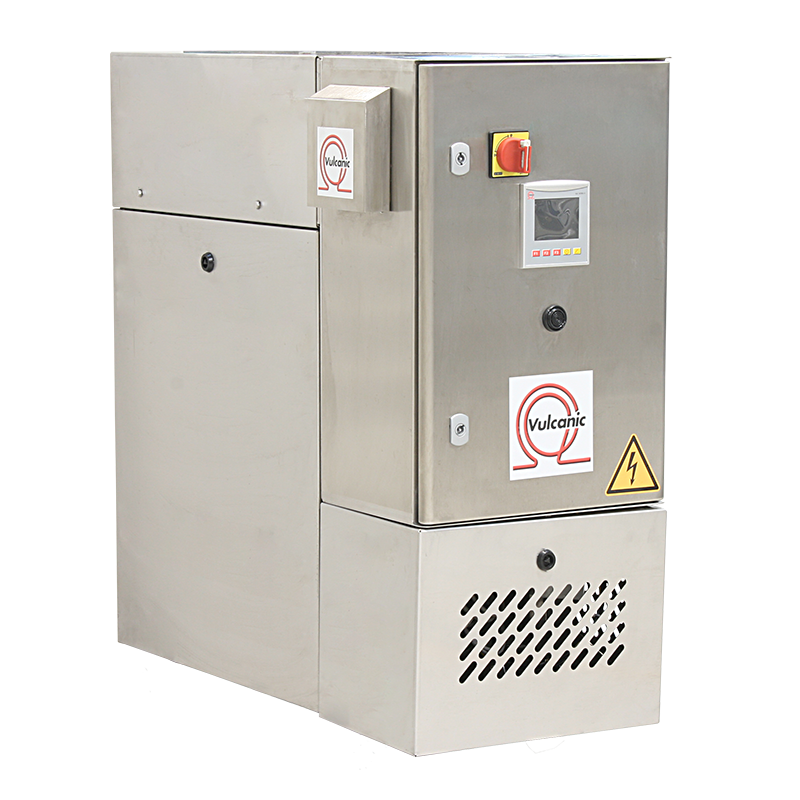

CO² vaporiser designed to vaporise a nominal flow of 570kg/h of liquid CO² (-25°C to -15°C) into gaseous CO² at a minimum of +5°C. Heating power 60 kW at 400V 3P, operating pressure 13 to 30bar(g). Vaporisation is ensured by the circulation of a primary heat transfer fluid through a plate heat exchanger, providing the thermal transfer required for the vaporisation of the CO² flow rate. The vaporiser is equipped with a low outlet gas temperature cut-off system with a proportional valve at the fluid outlet. Hydraulic connections are via 2 × ND20 NP40 RF flanges (EN1092-1). It is equipped with an electrical control panel, featuring an CMS controller on the front face, which controls and limits the high and low CO² outlet temperatures.
CO² thermal fluid vaporisers provide the heating and vaporisation of CO² for a wide range of industrial applications such as food processing, chemicals, pharmaceuticals, as well as industrial gas cleaning and processing applications.
The vaporisation of the CO² is carried out indirectly by means of a heat transfer fluid (water / mono-ethylene glycol mixture) electrically heated and circulated through a copper-brazed stainless steel plate heat exchanger, ensuring excellent thermal control and complete separation between the CO² circuit and the heat source.
The complete system, including the electric heater, motor pump unit, expansion vessel, plate heat exchanger, instrumentation and pipework, is integrated into a stainless steel skid and electrical enclosure, forming a compact, ready-to-connect solution. The vaporiser is fitted with automatic CO² outlet temperature control, together with dedicated high and low temperature safety devices.
Designed for both indoor and outdoor installation, the CO² thermal fluid vaporiser provides a fully electric, reliable and high-performance solution, compatible with modern industrial requirements and carbon footprint reduction objectives.
- Heating capacity (kW) :
- 60
- heating capacity tolerance :
- +5/-10%
- Supply voltage:
- 400 V 3P
- Min allowable temperature TS (°C):
- -35
- Liquid CO2 inlet temperature :
- -35 °C to -15 °C
- Minimum required CO2 outlet temperature (°C):
- 5
- Operating pressure (bar g.) :
- 13 to 30
- Max allowable pressure PS (bar g.):
- 34
- Nominal CO2 flow rate to be vaporised (from -20 °C to +5 °C / 20 b ures.sql p
- 570
- CO2 state at inlet:
- Liquid 100%
- CO2 state at outlet:
- Gas 100%
- Control device:
- Integrated central management (controller)
- Hydraulique connections of the equipment:
- Flange ND20 NP40 RF (EN 1092-1)
- Option low outlet gas temperature cut-off system:
- Yes
- Heating device:
- Heat transfert fluid and exchanger
- Primary heat-transfert fluid :
- Mono-ethylene glycol 50 %
- Casing material:
- Inox
- Low fluid outlet temperature alarm:
- Yes
- Very low fluid temperature safety:
- Yes
- Equipment waterproofing:
- IP55
- Equipment installation:
- Indoor or outdoor without protection
- Permitted ambient temperature :
- -35 °C to +45 °C
- Fluid group according to PED (2014/68/EU):
- 2
- Category of the PED 2014/68/EU :
- Equipment covered by article 4§3
- Estimated weigth (kg):
- 240
- Accessories included:
- Welding neck mating flange + Bolting + Gasket
-
